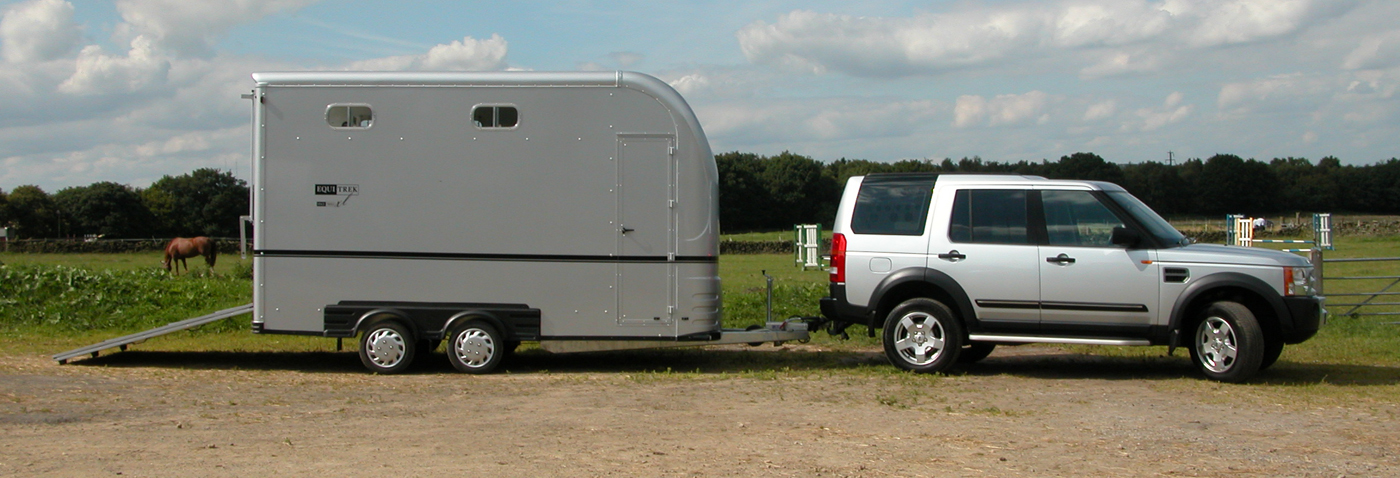

  • Space-Treka III


    Three horse herringbone trailer with separate tack and changing area

Space-Treka III
from only €0.00 + vat

Space-Treka III

The Space-Treka III carries up to three horses or four ponies (depending on size and weight) whilst remaining compact and easy to tow.

The totally separate tack and changing area provides ample space for all your equipment, making show days so much more enjoyable.

The horses travel herringbone as in larger horseboxes, and load with ease up the low, wide, rear ramp. The standard safety loading doors guide the horses up the ramp for additional safety.


The GBP prices apply to the UK only.

International customers will need to contact their nearest dealership for prices.


Please note some images may show optional extras not included as part of the base specification.

Space-Treka III
Space-Treka III
Space-Treka III
Space-Treka III Blue
Space-Treka III open doors back
Space-Treka III side on
Space-Treka III horse leading out
Space-Treka III doors open
Space-Treka III horse partitions
Click to view our 360 Virtual Tours for this product close <

Space-Treka III

Weights and Dimensions

External Dimensions Ft.ins m
Length: 19'0" 5.800
Width: 8'0" 2.430
Height: 9'9" 2.975
Approx. Weight Kg
Unladen Weight: 1500kg*
Axle 1: 1800kg
Axle 2: 1800kg
Gross Weight: 3500kg

Click to view detailed dimensions and specifications for the Classic model

*Unladen weight dependant on final specification

Internal Layouts

internal layoutclose <
internal layout
Main Body:
Colour: Self colour white with black graphics. Any other colour available at extra cost
Wheels: Four fully braked wheels with low profile tyres and wheel trims. Spare wheel and brace included
Tie Rings: Three external tie rings


Horse Area:
Partition: Three fully adjustable partitions with skirt to the floor
Head Dividers: Three large integral head dividers
Ventilation: Five opening windows and skylight roof vent
Lighting: Two interior light
Tie Rings: Four horse tie rings and four hay net tie rings
Grooms Door: Large, lockable door for easy access from tack changing area to horse area


Tack and Changing Area:
Grooms Door: Large, lockable door for easy access
Lighting: One interior light
Floor: Cushion flooring
Ventilation: One opening window
Tack Fittings: Three saddle racks, three bridle racks and three coat hooks


Internal Dimensions  External Dimensions
Horse Area Ft. ins m Body Area Ft.ins m
Length: 11'2" 3.400 Length: 19'0" 5.800
Width: 7'3" 2.210 Width: 8'0" 2.430
Height: 7'6" 2.290 Height: 9'9" 2.975
Approx. Weight  Kg
Unladen Weight: 1500kg
Axle 1: 1800kg
Axle 2: 1800kg
Gross Weight: 3500kg
Space-treka III

Paint & Graphics

  • Self Colour White with Black Graphics

Main Body

  • Aerodynamic Fibreglass Mould
  • Galvanised Steel Chassis
  • Lockable Coupling
  • Independent Suspension
  • Four Fully Braked Wheels
  • Built in ISO9001 Factory
  • Three External Tie Rings

Living Area

  • Easy-Clean Cushion Flooring
  • Living Area Door
  • One Interior Light

Horse Area

  • Three Head Dividers
  • Self-Contained Horse Area
  • Skylight Roof Vent
  • Composite High Impact Kick Boards
  • Composite Panels
  • Grooms Door Between Horse Area and Living Area
  • Grooms Door
  • Light and Spacious Interior
  • One Interior Light
  • Slip Resistant Rubber Ramp
  • Strong Aluminium Plank Floor
  • Three Adjustable Partitions
  • Three Horse and Haynet Tie Rings
  • Three Saddle and Bridle Racks
  • White Easy Clean Safety Loading Doors
  • Additional Skylight Roof Vent
